Brand:
SkyTronics LED, Inc.Item NO.:
C-Beetle P2.97Payment:
Wire Transfer/ ChecksProduct Origin:
Shenzhen,ChinaColor:
full color RGBShipping Port:
Glendale CaliforniaLead Time:
3 daysWarranty:
2 yearsAdvantages:

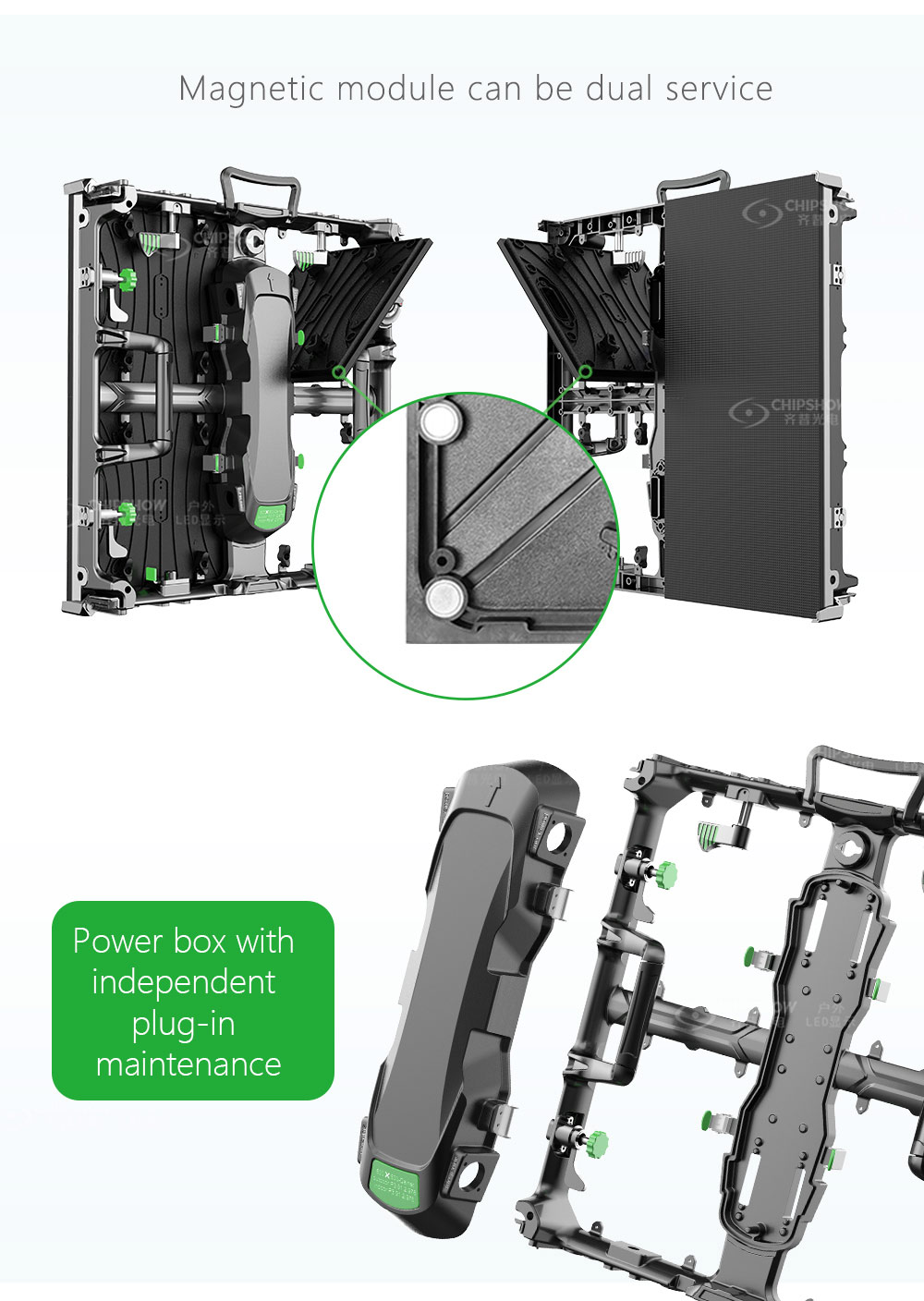

1,Easy:Modular design, easy assembly and maintenance.
2,module size:250*250mm ,Smooth surface, module gap small ,High precision.

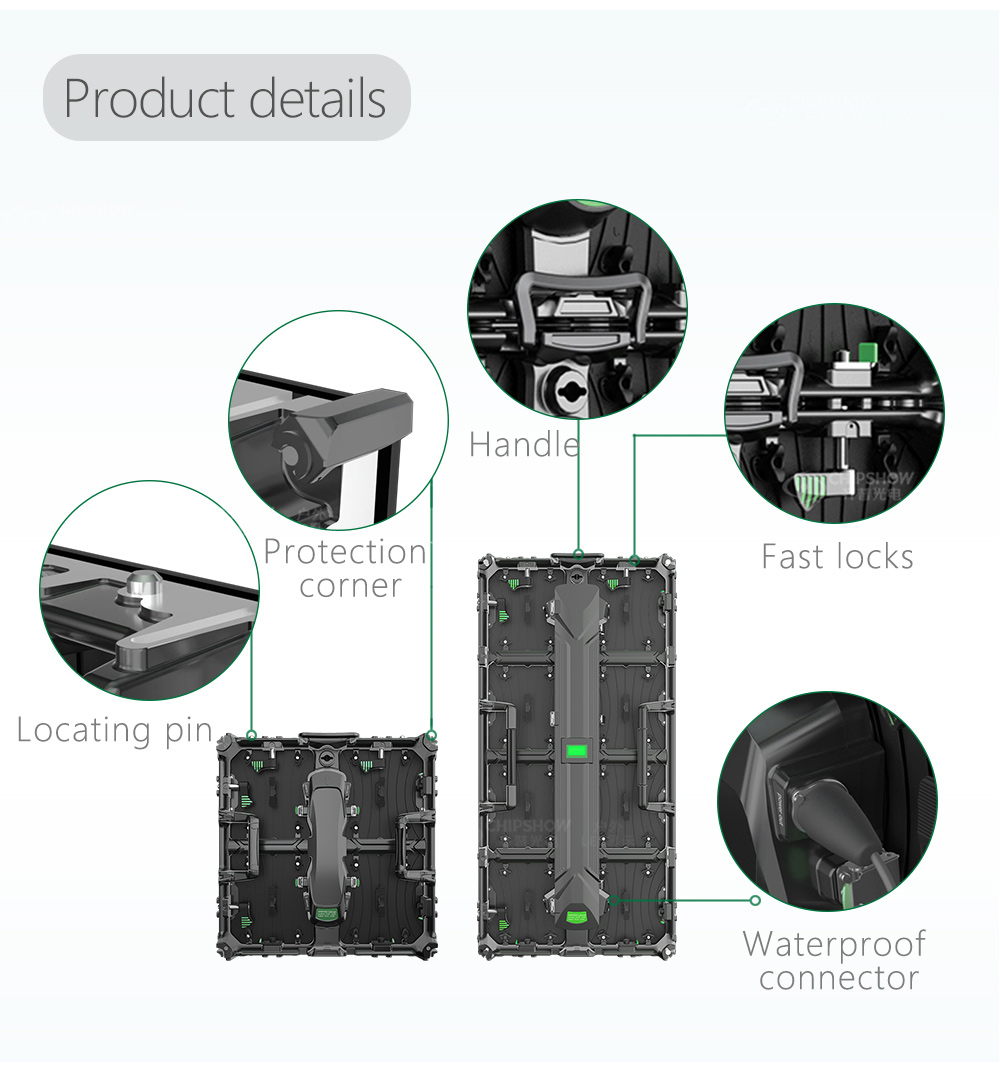

Cabinet features:

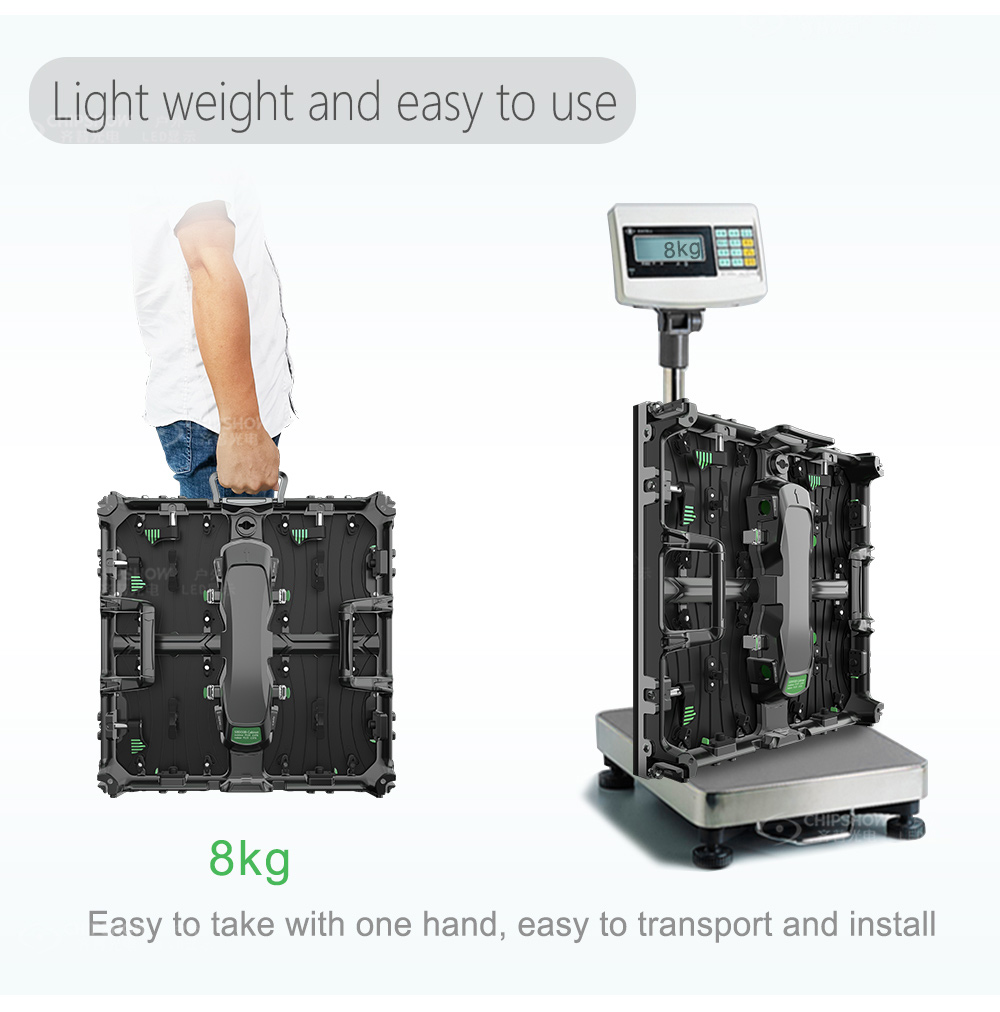

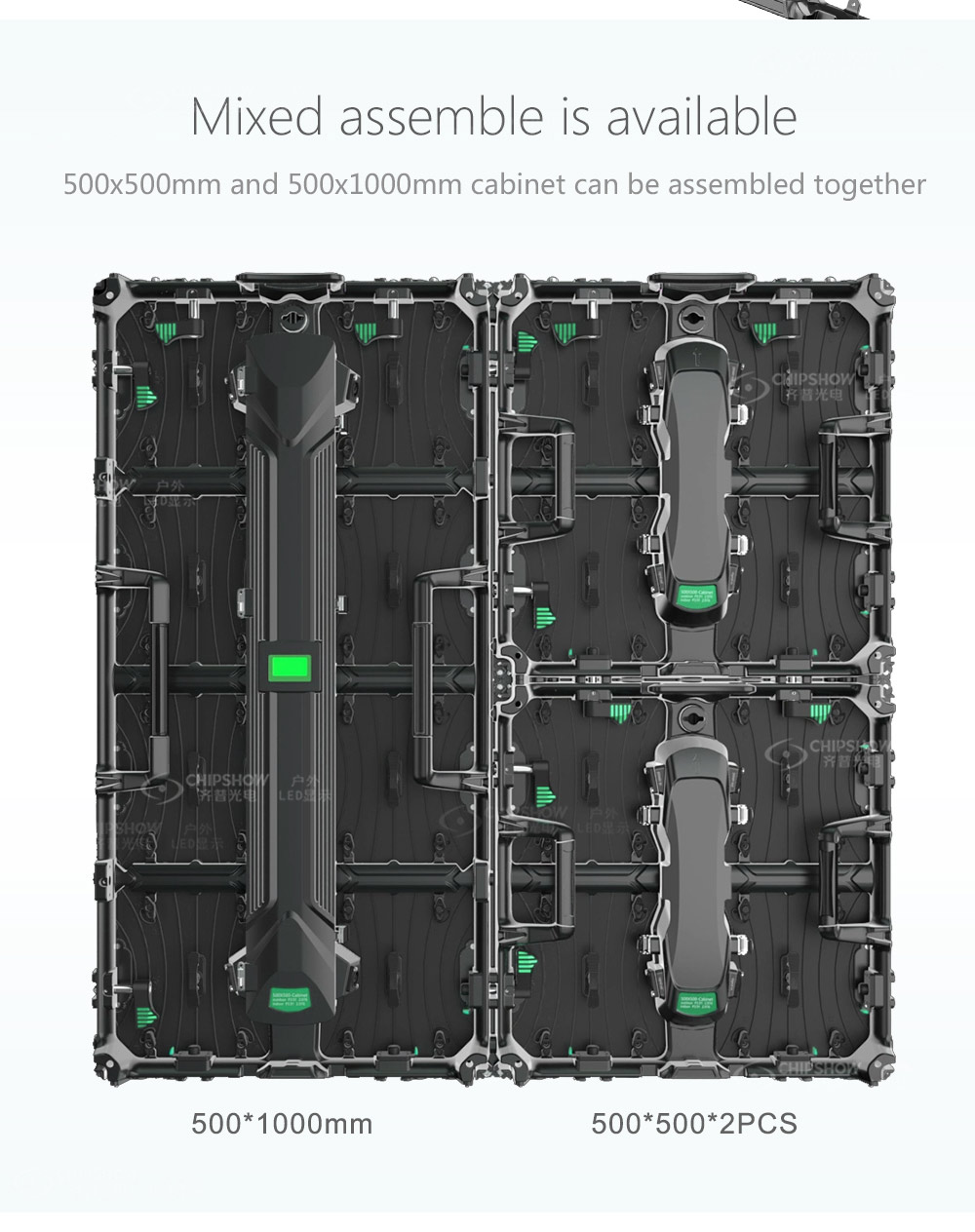

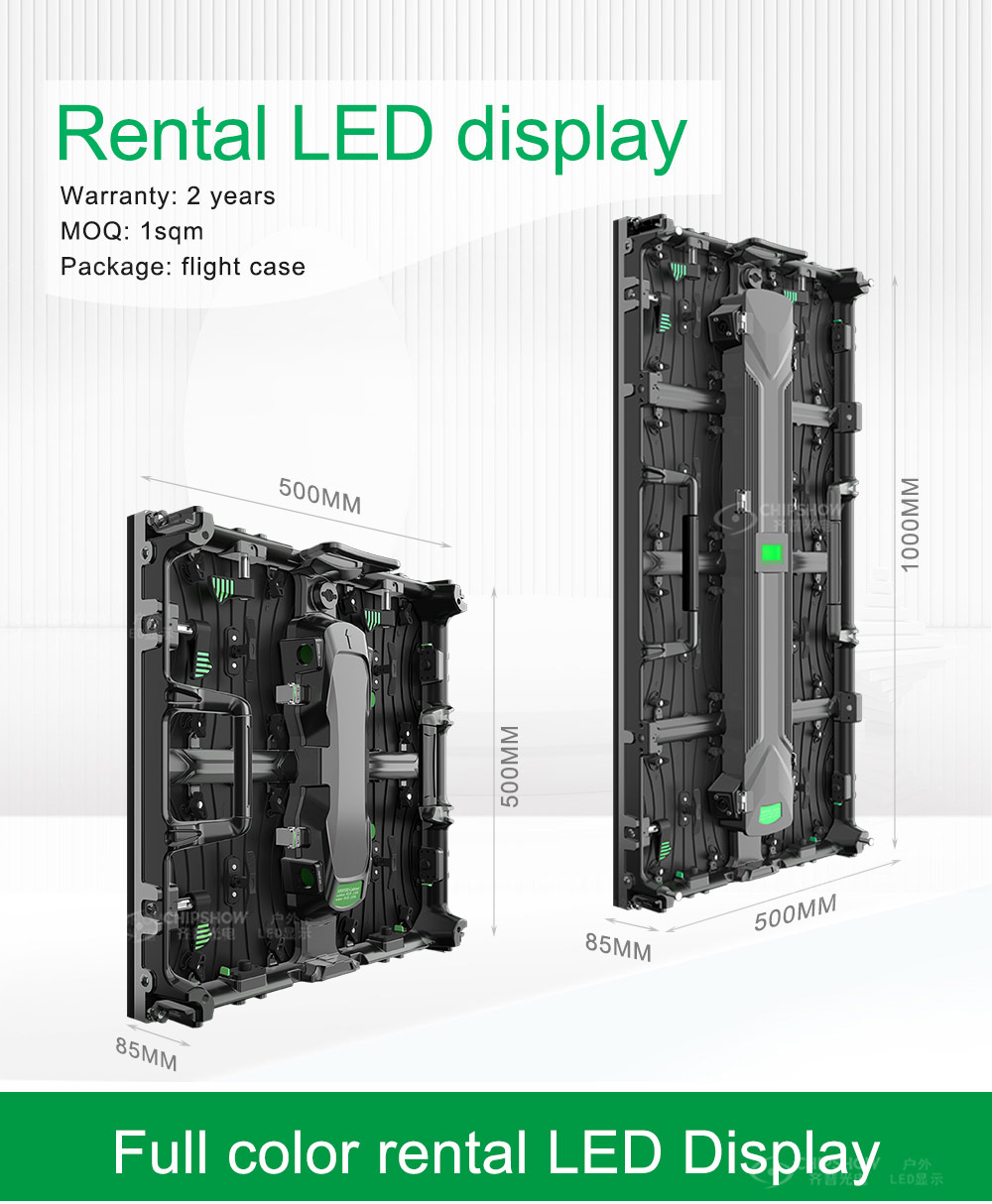

1, Light:Cabinet size:500*500*86mm, Weight:7.9kg/pc.

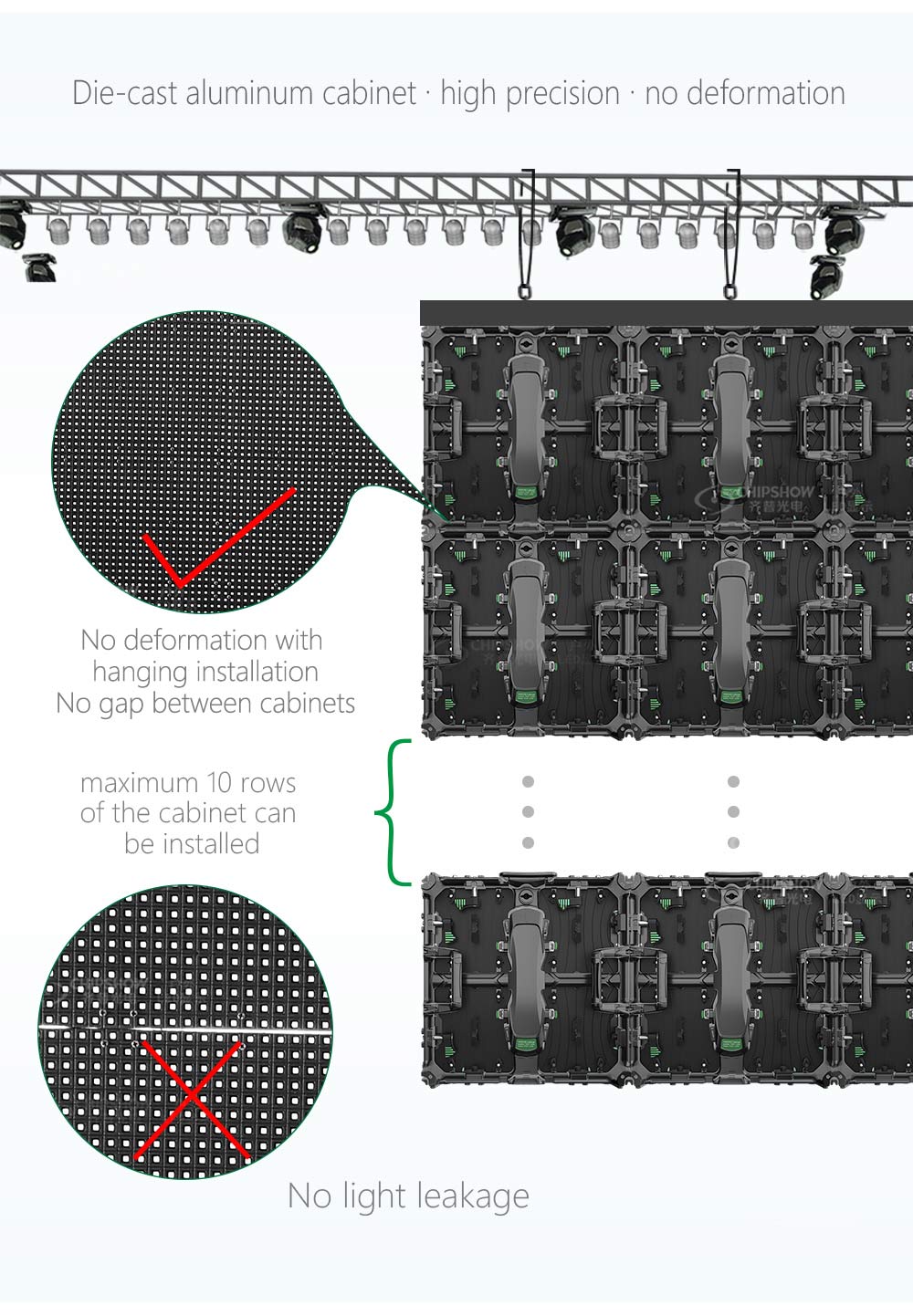

2, Thin:Die-cast aluminum design, high precision, thickness only 86mm.

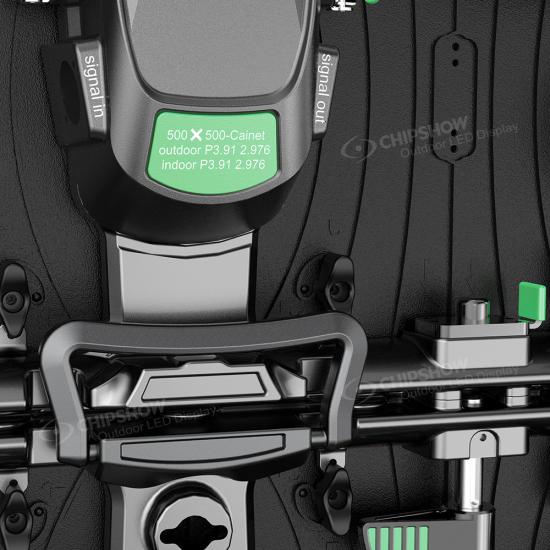

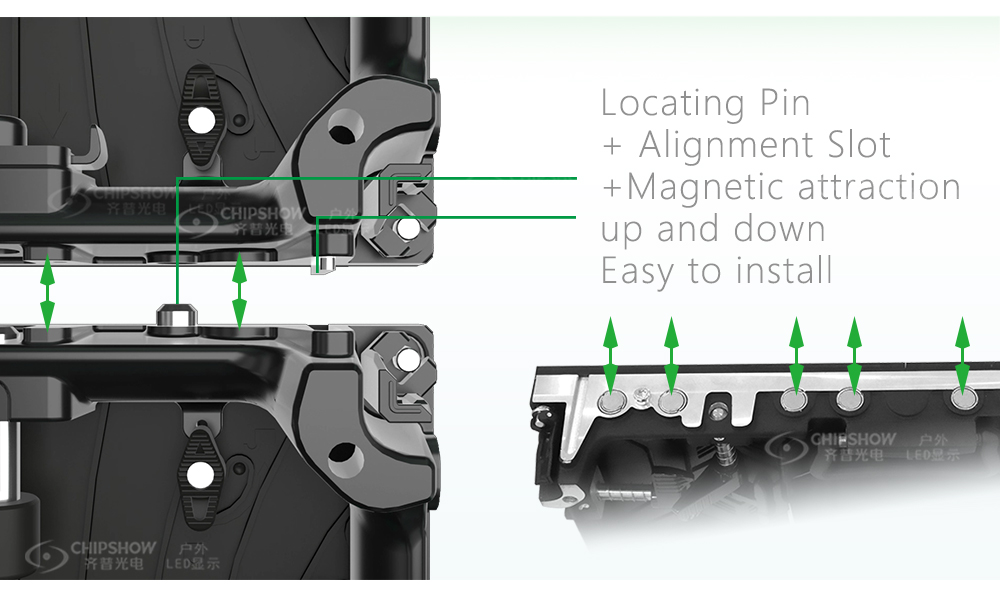

3, Fast:Fast locks, Easy to assemble and disassemble.
4, Compatibility:Available pixel pitch for P2.6,P2.97, P3.91,P4.81;
5, Low:Excellent cooling design, no fans or air-conditioners needed noiseless, low power consumption, cost-effective.

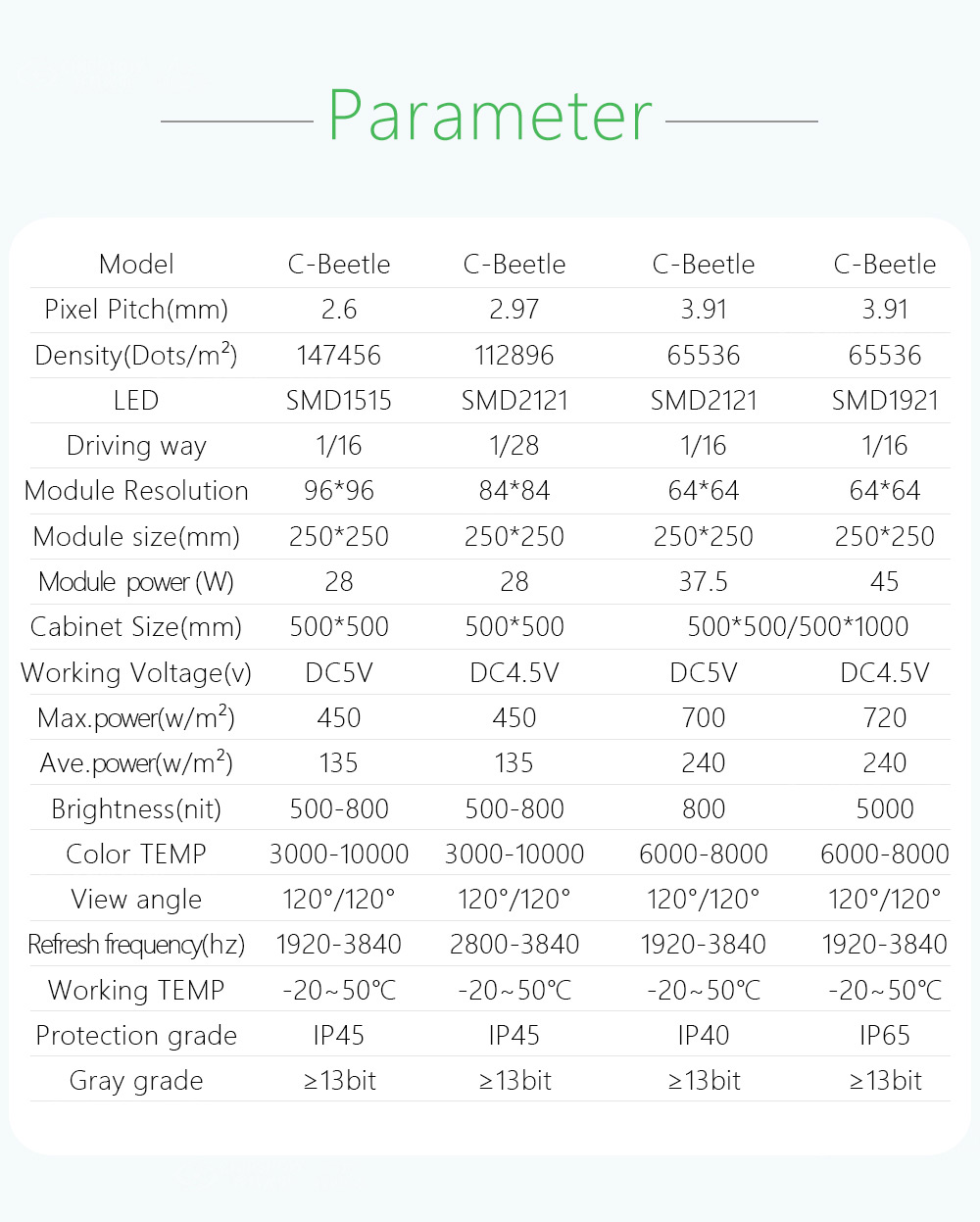

Specification:
Item |
Specification Parameter |
|
Pixel
Pitch、Resolution rate、size |
2.971mm、84*84、250*250*16mm |
|
|
1R1G1B、 SMD2121 3in1 |
|
Working
voltage、Module Power |
|
|
Driving
IC、Driving way |
ICN2153、1/28 |
|
HUB |
HUB(AXS-500X500F)-V1.0 |
|
Material、Cabinet Weight(kg/Cabinet) |
Cast
aluminum、7.9kg/Cabinet |
|
Resolution
rate、size、Module quantity |
168*168Dots、500*500*90m、2*2 |
|
Density |
112896 Dots/㎡ |
|
White
balance 、Color temperature |
500-800CD/㎡、3000K-10000K |
|
view
angle、Non-Flatness、Module interval |
H/V:120°/120°、<0.2mm、<0.2mm |
|
Maximal
power/㎡、Average power/㎡ |
450W/㎡、135W/㎡ |
|
Frame
frequency、Refresh frequency、Gray grade |
60Hz、2800~3840Hz 、≥14bit |
|
Control
system、System supports |
CHIPSHOW,Windows XP,WIN
7 |
|
Working
temperature、Protection grade |
-20~50℃、Front/Back:IP45 |
