Brand:
SkyTronics LED, Inc.Item NO.:
C-Max P2.5Payment:
Wire Transfer/ ChecksProduct Origin:
Shenzhen,ChinaColor:
full color RGBShipping Port:
Glendale CaliforniaLead Time:
3 daysAdvantages:
1,,Ready stock: Ready stock in European and American warehouses, face to face payment and fetching is available.

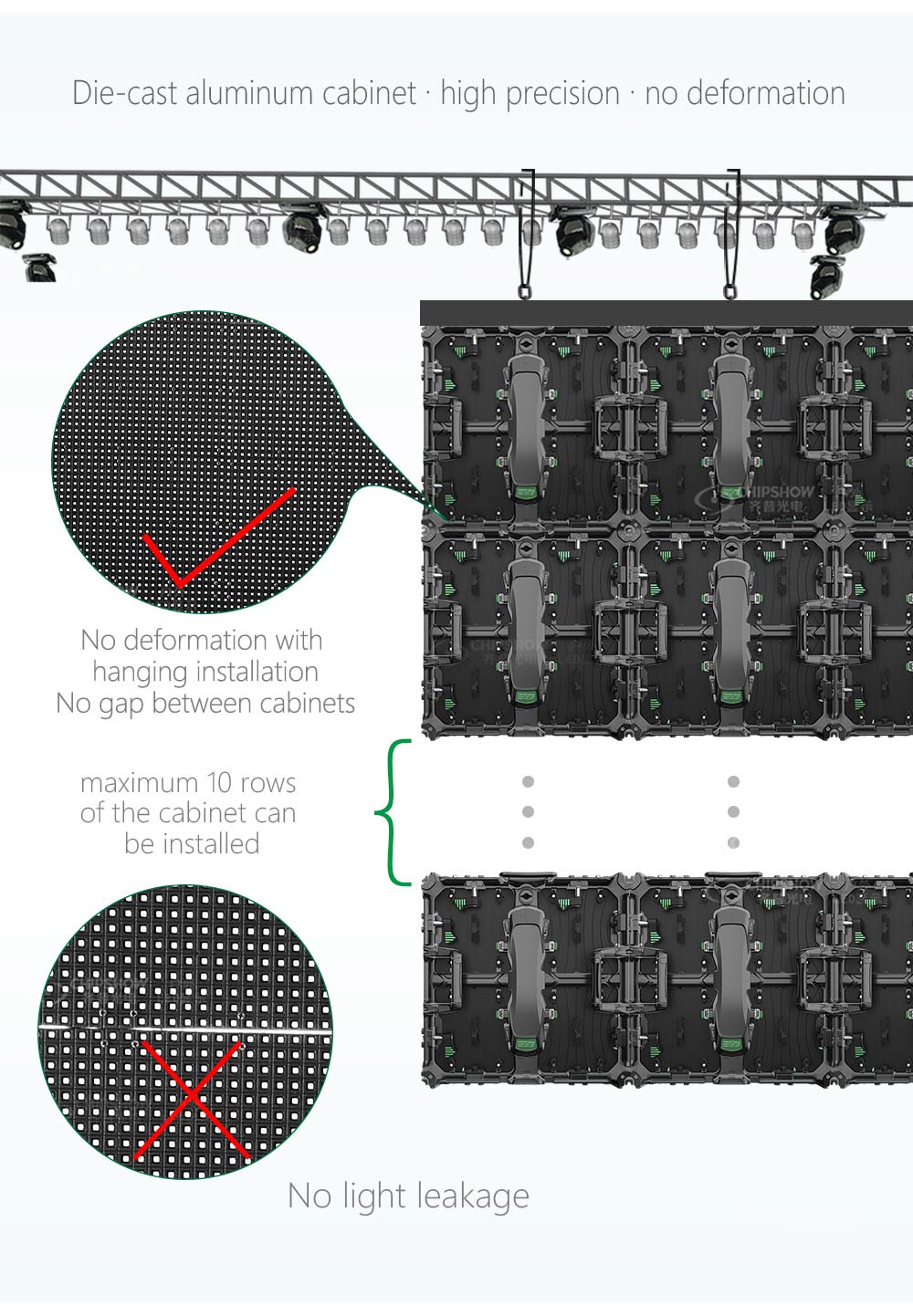

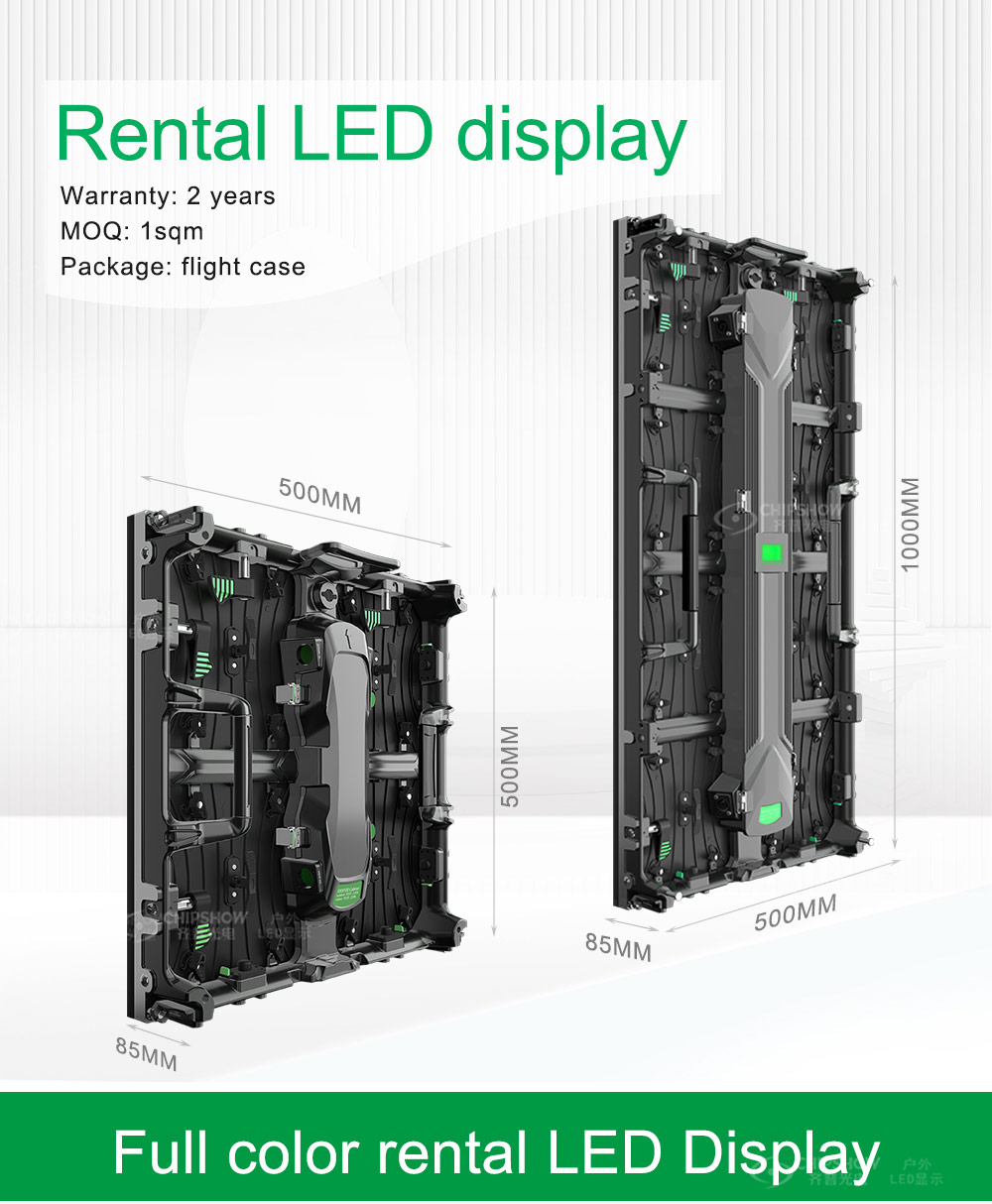

2,High precision: Die-cast aluminum cabinet, high precision and good flatness;

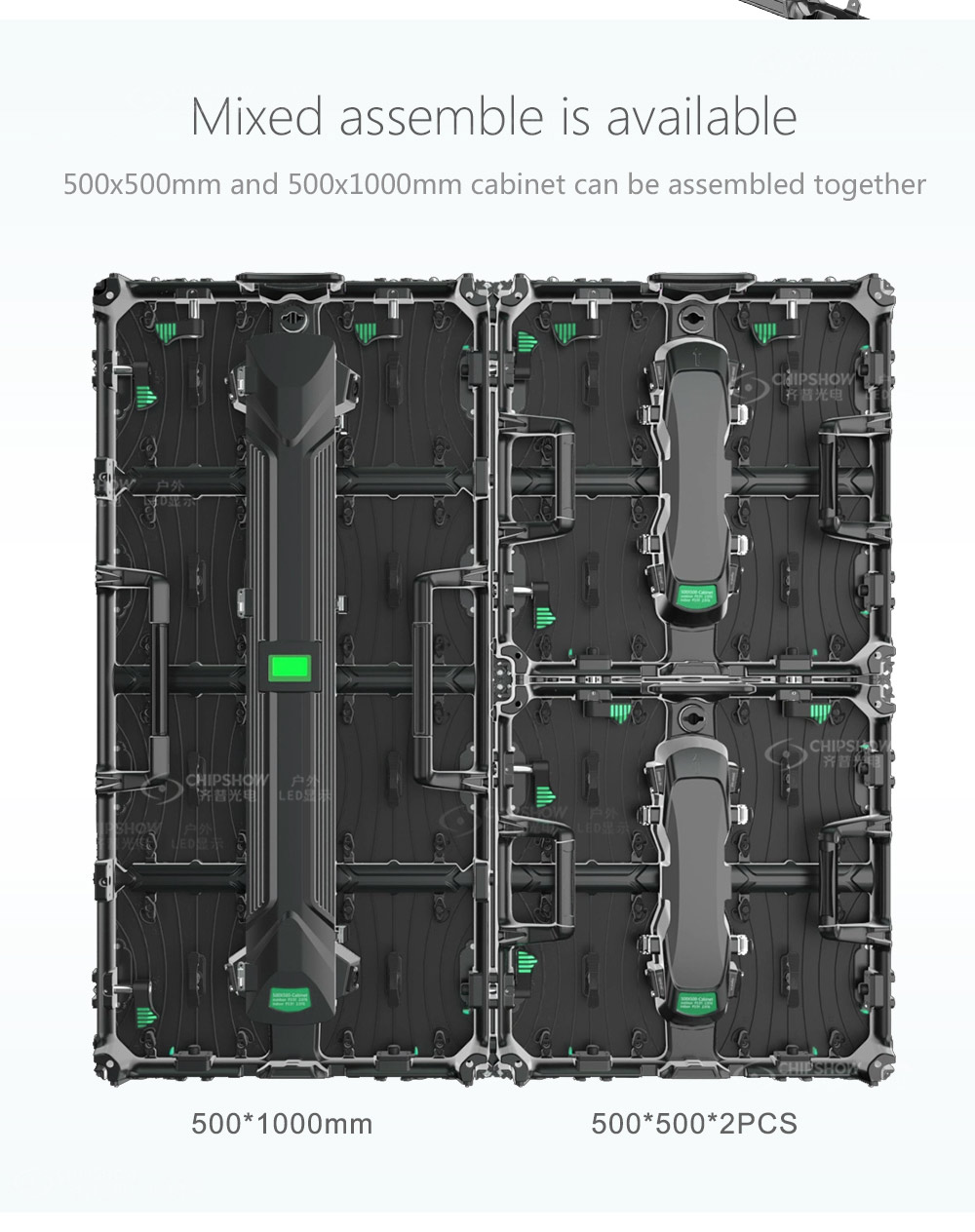

3,Good compatibility: The cabinet can be quickly replaced with module of the pixel pitch from P1.25 to P4, and images can be upgraded to higher quality with lower cost.

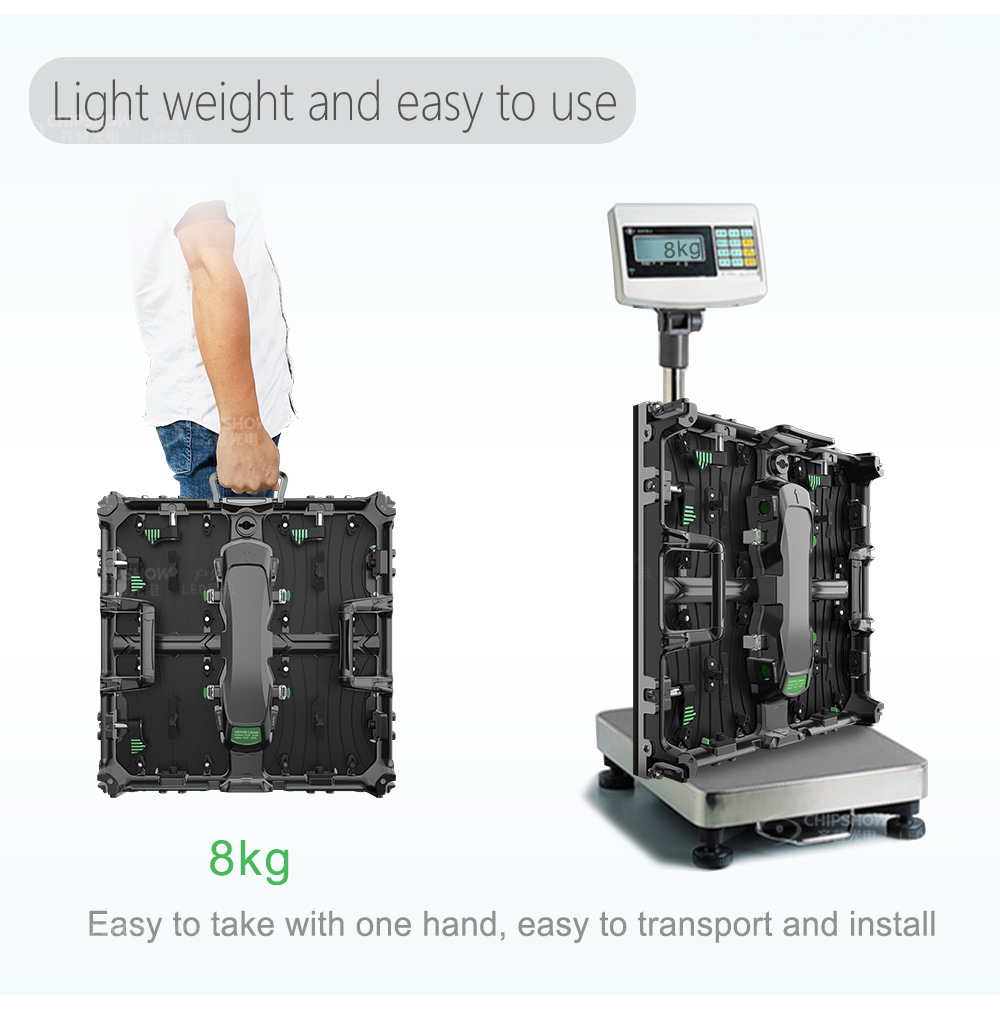

4,Ultra-light and thin: Die-cast aluminum cabinet, light-weighted, thin, beautiful appearance;

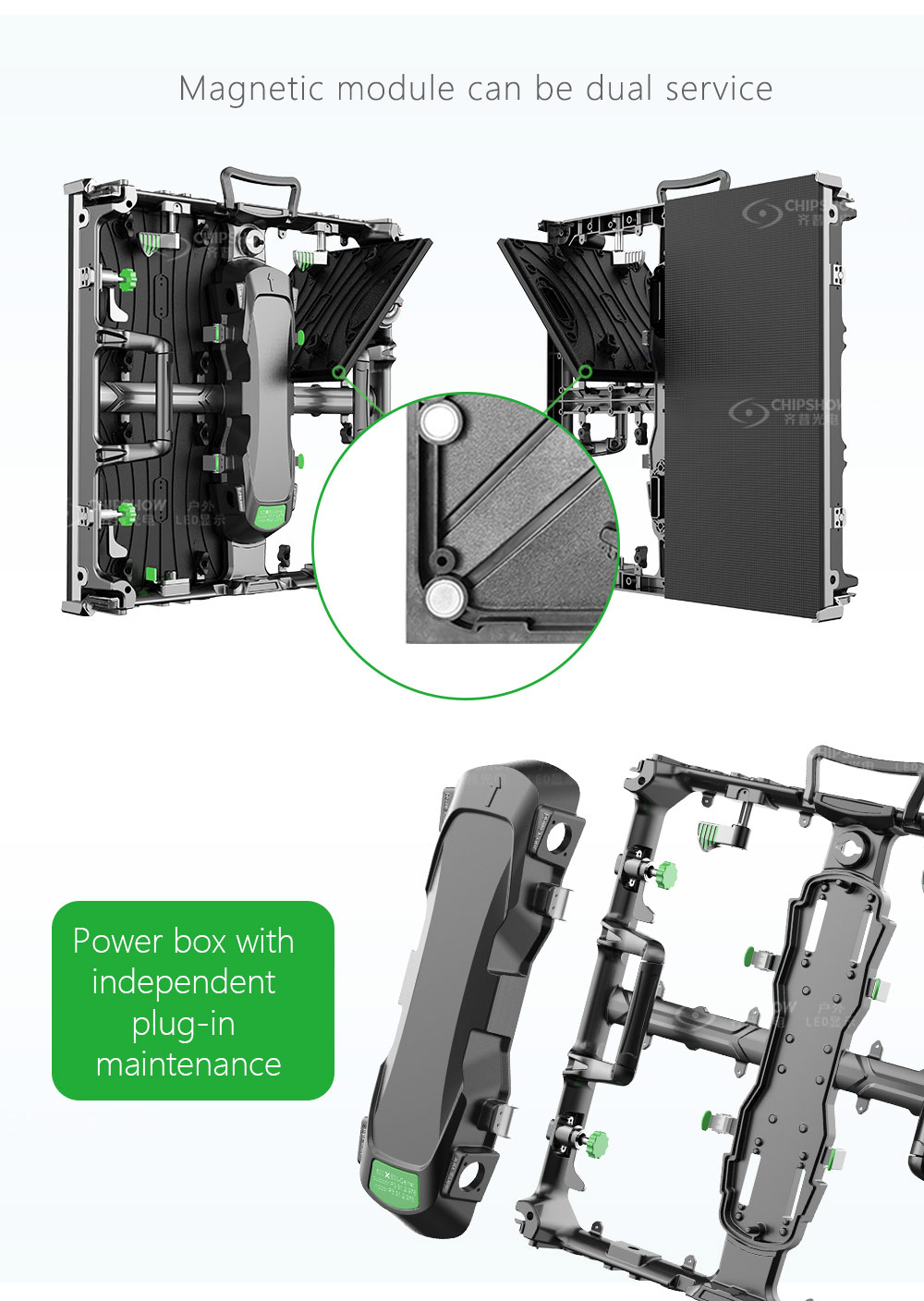

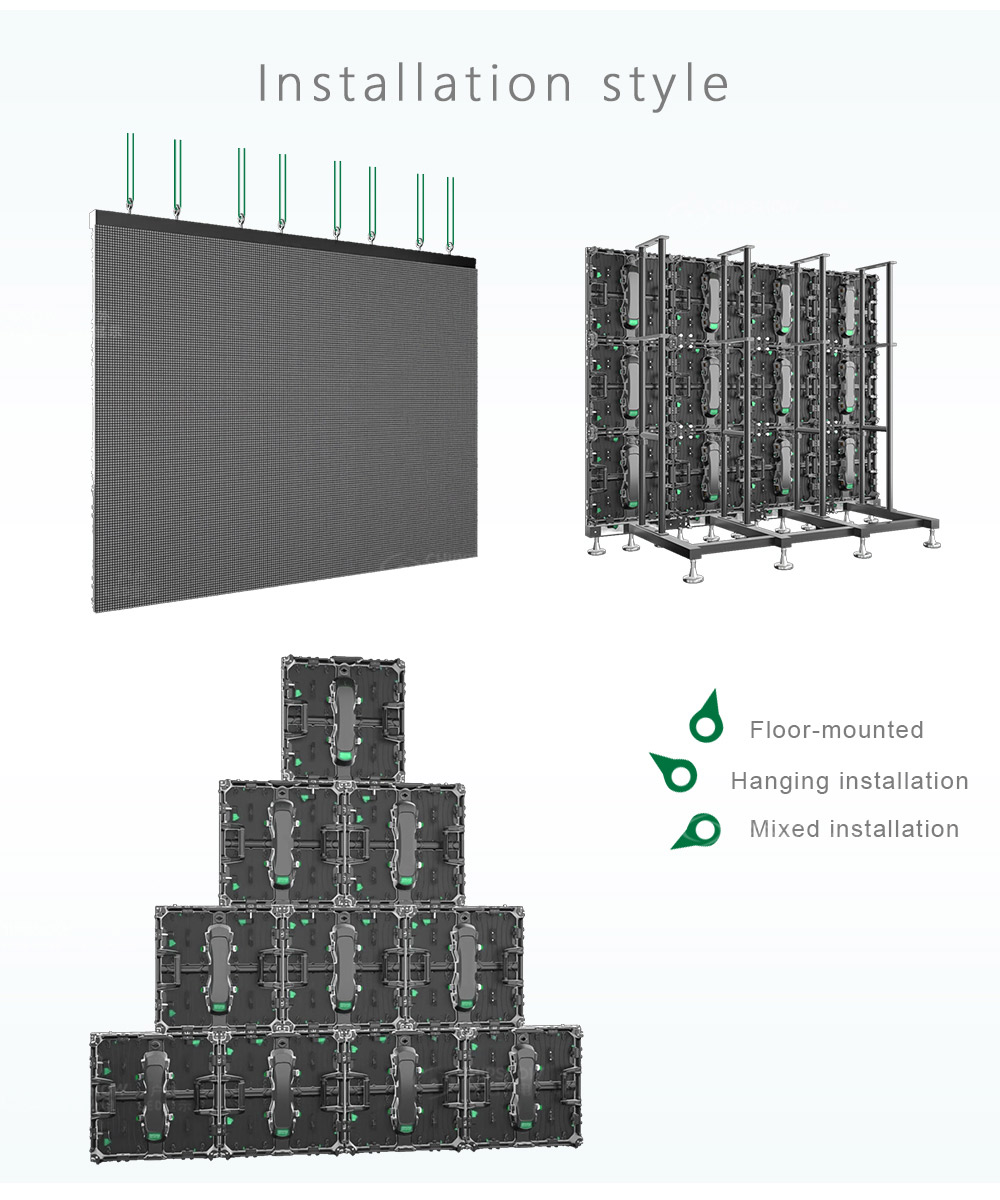

5,Wall-mounted installation: modules, power supplies, and system cards can be fully maintained from the front; space-saving, suitable for high-end commercial display occasions.

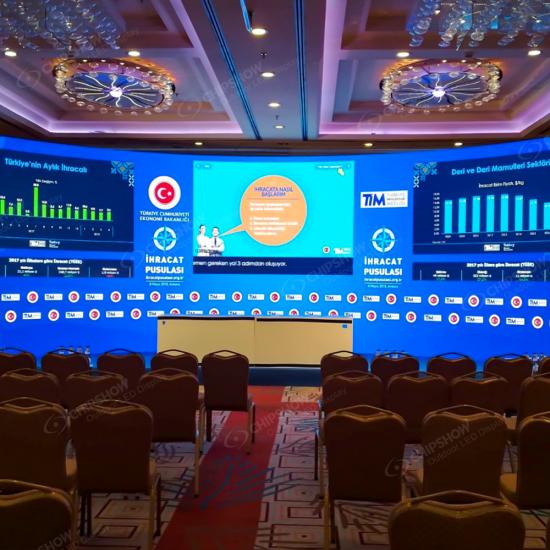

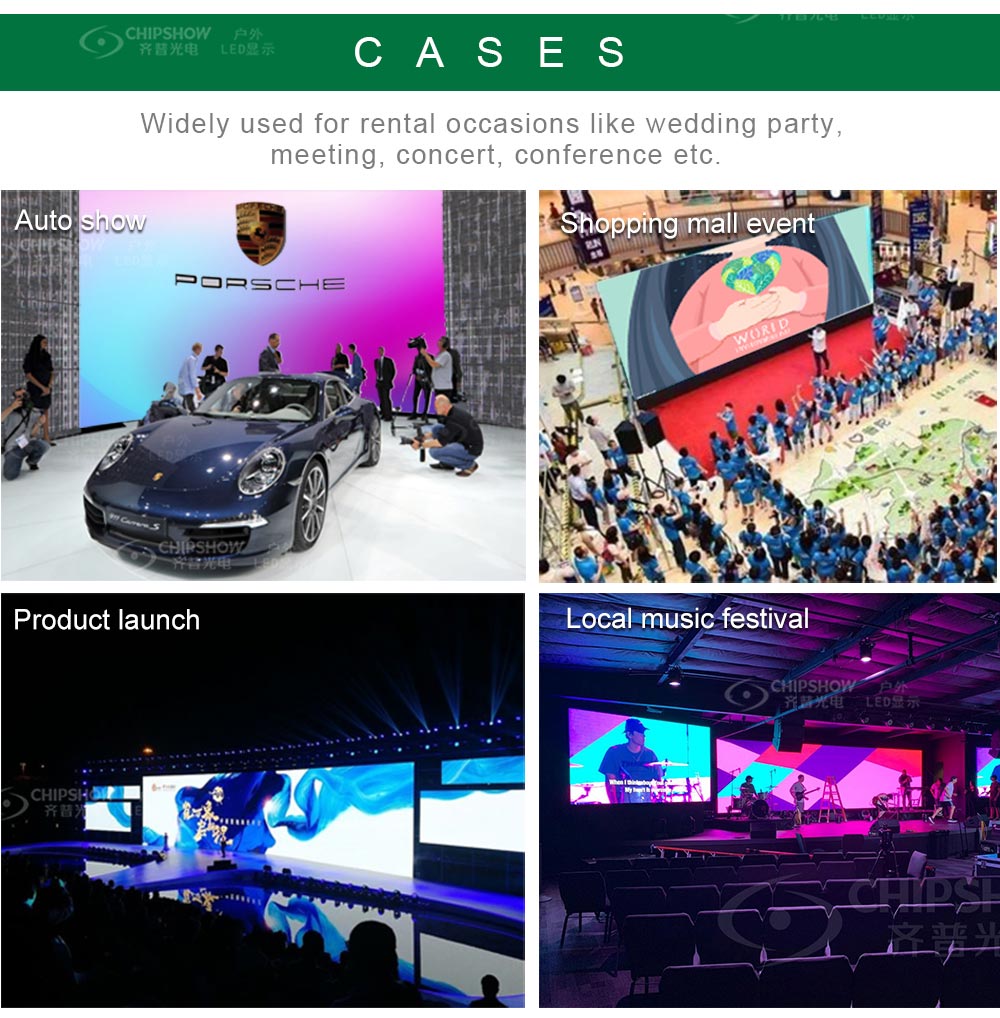

6,Ratio: Can be assembled to 4:3, 16:9 large screens; the same video source ratio as LCD, and can directly replace the original LCD. Widely used in auditorium stage, conference room, banquet hall, exhibition studio, traffic command, security monitoring and other occasions.
Specification:
Item |
Specification Parameter |
|

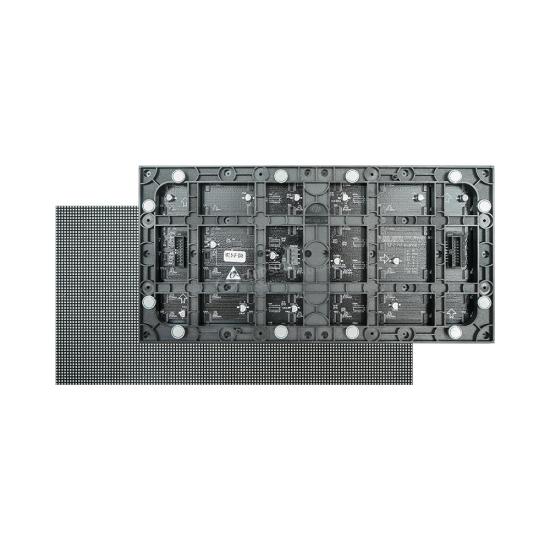

Pixel
Pitch、Resolution rate、size |
2.5mm、128*64、320*160*17mm |
|
|
1R1G1B、 SMD1515 |
|
Working
voltage、Module Power |
|
|
Driving
IC、Driving way |
ICN2153、1/32 |
|
HUB |
HUB75 |
|
Material、Cabinet Weight(kg/Cabinet) |
Die-cast
Aluminum、9kg/Cabinet |
|
Resolution
rate、size、Module quantity |
256*192Dots、640*480*70mm、2*3 |
|
Density |
160000 Dots/㎡ |
|
White
balance 、Color temperature |
800 CD/㎡、6000K-8000K |
|
view
angel、Non-Flatness、Module interval |
H/V:120°/120°、<0.2mm、<0.2mm |
|
Maximal
power/㎡、Average power/㎡ |
360W/㎡、108W/㎡ |
|
Frame
frequency、Refresh frequency、Gray grade |
60Hz、1920Hz-3840Hz、≥13bit |
|
Control
system、System supports |
CHIPSHOW,Windows XP,WIN
7 |
|
Working
temperature、Protection grade |
-20~50℃、Front/Back:IP40 |
